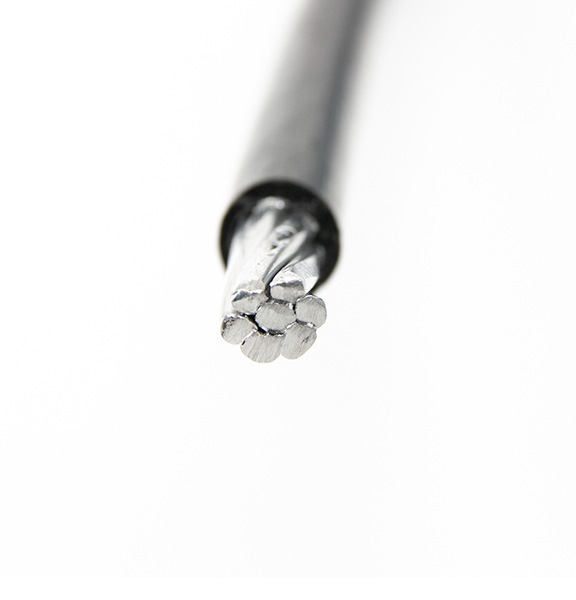

AERIAL BONDLE CABLE WITH IEC STANDARD - Image 2

AERIAL BONDLE CABLE WITH IEC STANDARD

Aerial Bondle Cables (ABC) are several phase conductors insulated and tightly bundled together with bare/insulated neutral conductor for using in overhead power lines. Aerial Bundled Cable is primarily used for overhead service applications such as construction sites, outdoor or street lighting, etc. It is also used for electrical installations with alternating power networks with nominal voltage U0/U 0.6/1kV or in direct power networks with maximum voltage according to land 0.9kV.

Send Email
Get Price

Share:

SPECIFICATIONS

CONSTRUCTION

PARAMETER

RELATED PRODUCTS

INQUIRY

SPECIFICATIONS

1.APPLIACATION: DISTRIBUTION LINE POWER NETWORKS

2.ELECTRICAL PERFORMANCE: 0.6/1kV

3.STANDARD: IEC

4.CORE IDENTIFICATION: BY COLOR STRIPE, BY RIB, BY NUMBER

5.CHEMICAL & UV & OIL RESISTANCE: GOOD

6.MINIMUM BENDING RADIUS: x15 CABLE DIAMETER

7.CORE: 1,2,3,4 & 1+1, 2+1, 3+1

8.THERMAL PERFORMANCE
MAXIMUM SERVICE TEMPERATURE:90℃
MAXIMUM SHORT-CIRCUIT TEMPERATURE:250℃(max. 5s)
MINIMUM SERVICE TEMPERATURE:-20℃

9.INSTALLATION CONDITIONS: OPEN AIR, BURIED.

10. CABLE MARKING: OIL INK PRINTING, LASER PRINTING, EMBOSSING PRINTING

11. PACKAGING: BY ROLL, BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM.

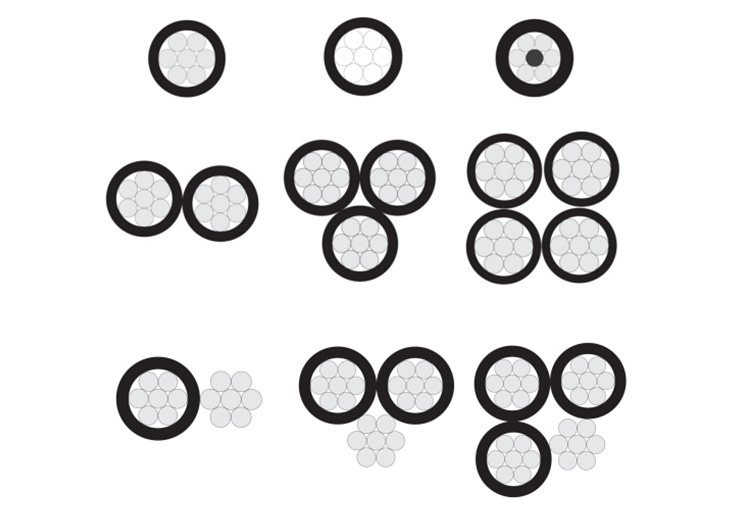

CONSTRUCTION

Aerial Bundle Cable

1. Conductor

Circular stranded, rounded, compacted aluminum conductor, or aluminum alloy conductor, or ACSR conductor.

2. Insulation

Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE).



PARAMETER

AERIAL BUNDLED CABLE(1, 2, 3, 4)

No. of Conductor and AreaNumber of WiresNominal DiameterNominal Thickness of InsulatingNominal Insulated Core DiameterApproximate Overall DiameterApproximate Cable Weight
BareO.D.
mm2No.mmmmmmmmmmkg/km
1×1071.354.051.0 6.05 6.0541.42
1×1671.714.8 1.27.2 7.265.24
1×2572.166.0 1.28.4 8.493.85
1×3572.557.0 1.49.8 9.8129.14
1×5073.0 8.3 1.411.1 11.1170.05
1×70192.1610.0 1.412.8 12.8233.53
1×95192.5511.6 1.614.8 14.8316.64
1×120372.0513.0 1.616.2 16.2388.60
1×150372.2814.6 1.818.2 18.2485.66
1×185372.5616.2 2.0 20.2 20.2600.46
1×240372.9518.4 2.222.8 22.8783.32
2×1071.354.051.0 6.05 12.184.42
2×1671.714.8 1.27.2 14.4132.69
2×2572.166.0 1.28.4 16.8190.36
2×3572.557.0 1.49.8 19.6263.58
2×5073.0 8.3 1.411.1 22.2352.80
2×70192.1610.0 1.412.8 25.6478.29
2×95192.5511.6 1.614.8 29.6647.49
2×120372.0513.0 1.616.2 32.4797.32
2×150372.2814.6 1.818.2 36.4995.71
2×185372.5616.2 2.0 20.2 40.41229.46
2×240372.9518.4 2.222.8 45.61593.87
3×1071.354.051.0 6.05 13.03 126.25
3×1671.714.8 1.27.2 15.51 198.58
3×2572.166.0 1.28.4 18.09 285.15
3×3572.557.0 1.49.8 21.11 394.01
3×5073.0 8.3 1.411.1 23.91 524.55
3×70192.1610.0 1.412.8 27.57 714.16
3×95192.5511.6 1.614.8 31.88 967.29
3×120372.0513.0 1.616.2 34.89 1189.81
3×150372.2814.6 1.818.2 39.20 1486.23
3×185372.5616.2 2.0 20.2 43.51 1835.92
3×240372.9518.4 2.222.8 49.11 2382.02
4×1071.354.051.0 6.05 14.60 168.09
4×1671.714.8 1.27.2 17.38 264.47
4×2572.166.0 1.28.4 20.28 379.94
4×3572.557.0 1.49.8 23.66 524.45
4×5073.0 8.3 1.411.1 26.80 696.29
4×70192.1610.0 1.412.8 30.90 950.03
4×95192.5511.6 1.614.8 35.73 1287.10
4×120372.0513.0 1.616.2 39.11 1582.30
4×150372.2814.6 1.818.2 43.93 1976.74
4×185372.5616.2 2.0 20.2 48.76 2442.38
4×240372.9518.4 2.222.8 55.04 3176.17

AERIAL BUNDLED CABLE WITH BARE MESSENGER CORE

No. of Conductor and AreaPhase ConductorNeutral MessengerApproximate Overall DiameterApproximate Cable Weight
Number of WiresNominal DiameterNominal Thickness of InsulatingNominal Insulated Core DiameterNumber of WiresNominal Diameter
BareO.D.BareO.D.
mm2Nos.mmmmmmmmNos.mmmmmmkg/km
1×10+1071.354.051.0 6.05 71.354.0510.169.19
1×16+1671.714.8 1.27.2 71.715.1312.33109.78
1×25+2572.166.0 1.28.4 72.166.4814.88162.89
1×35+3572.557.0 1.49.8 72.557.6517.45225.75
1×50+5073.0 8.3 1.411.1 73.0 9.0 20.1308.63
1×70+70192.1610.0 1.412.8 192.1610.823.6427.16
1×95+95192.5511.6 1.614.8 192.5512.7527.55579.55
1×120+120372.0513.0 1.616.2 372.0514.3530.55721.07
1×150+150372.2814.6 1.818.2 372.2815.9634.16899.90
1×185+185372.5616.2 2.0 20.2 372.5617.9238.121111.24
1×240+240372.9518.4 2.222.8 372.9520.6543.451446.24
2×10+1071.354.051.0 6.05 71.354.0534.79 111.02
2×16+1671.714.8 1.27.2 71.715.1342.07 175.67
2×25+2572.166.0 1.28.4 72.166.4850.15 257.68
2×35+3572.557.0 1.49.8 72.557.6558.70 356.18
2×50+5073.0 8.3 1.411.1 73.0 9.0 67.20 480.38
2×70+70192.1610.0 1.412.8 192.1610.878.41 663.03
2×95+95192.5511.6 1.614.8 192.5512.7591.22 899.35
2×120+120372.0513.0 1.616.2 372.0514.35100.70 1113.56
2×150+150372.2814.6 1.818.2 372.2815.96112.78 1390.41
2×185+185372.5616.2 2.0 20.2 372.5617.92125.62 1717.70
2×240+240372.9518.4 2.222.8 372.9520.65142.70 2237.39
3×10+1071.354.051.0 6.05 71.354.0553.59 152.85
3×16+1671.714.8 1.27.2 71.715.1364.53 241.56
3×25+2572.166.0 1.28.4 72.166.4876.48 352.47
3×35+3572.557.0 1.49.8 72.557.6589.44 486.62
3×50+5073.0 8.3 1.411.1 73.0 9.0 102.11 652.13
3×70+70192.1610.0 1.412.8 192.1610.8118.77 898.90
3×95+95192.5511.6 1.614.8 192.5512.75137.96 1219.16
3×120+120372.0513.0 1.616.2 372.0514.35151.96 1506.05
3×150+150372.2814.6 1.818.2 372.2815.96170.33 1880.93
3×185+185372.5616.2 2.0 20.2 372.5617.92189.55 2324.16
3×240+240372.9518.4 2.222.8 372.9520.65214.97 3028.54
