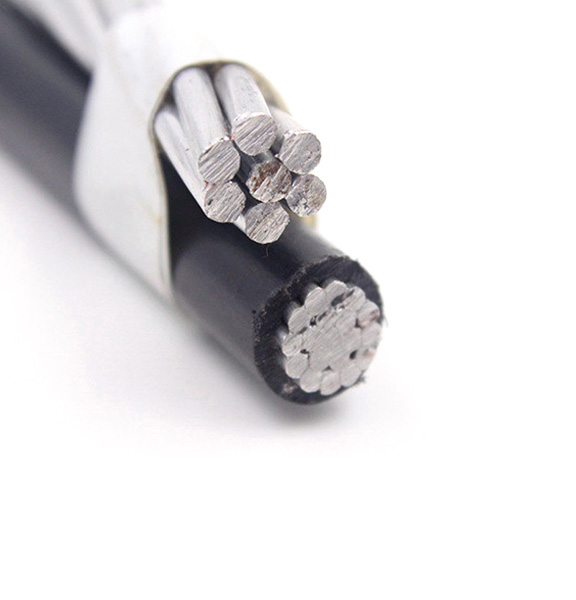

Aerial bundle cable (ABC Cable) with ASTM standard

ABC Cable

Aerial Bundled Cables are several phase conductors insulated and tightly bundled together with bare/insulated neutral conductor for using in overhead power lines.

Aerial Bundled Cable (ABC Cable) is primarily used for overhead service applications such as construction sites, outdoor or street lighting, etc.

It is also used for electrical installations with alternating power networks with nominal voltage U0/U 0.6/1kV or in direct power networks with maximum voltage according to land 0.9kV.

ABC cable is a type of overhead electrical conductor that combines the best features of aluminum and steel to create a strong, lightweight, and efficient transmission line.

ABC cable is made up of a central steel core, surrounded by a layer of aluminum wires, and finally encased in a protective jacket.

This unique design allows it to withstand harsh weather conditions, heavy loads, and other challenges that can impact electrical transmission lines.

SPECIFICATIONS

1.APPLIACATION: DISTRIBUTION LINE POWER NETWORKS

2.ELECTRICAL PERFORMANCE: 0.6/1kV

3.STANDARD: ASTM

4.CORE IDENTIFICATION: BY COLOR STRIPE, BY RIB, BY NUMBER

5.CHEMICAL & UV & OIL RESISTANCE: GOOD

6.MINIMUM BENDING RADIUS: x15 CABLE DIAMETER

7.CORE: 1, 1+1, 2+1, 3+1

8.THERMAL PERFORMANCE
MAXIMUM SERVICE TEMPERATURE:90℃
MAXIMUM SHORT-CIRCUIT TEMPERATURE:250℃(max. 5s)
MINIMUM SERVICE TEMPERATURE:-20℃

9.INSTALLATION CONDITIONS: OPEN AIR, BURIED.

10. CABLE MARKING: OIL INK PRINTING, LASER PRINTING, EMBOSSING PRINTING

11. PACKAGING: BY ROLL, BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM.

CONSTRUCTION

1. Phase Core

Conductor: Circular stranded, rounded, compacted aluminum conductor.

AAAC conductor and ACSR conductor(for covered line wire).

Insulation: Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE).

2. Neutral Core

Bare AAC, AAAC, ACSR.

PARAMETER

COVERED LINE WIRE

Code word	Phase Conductors					Rated Strength	Nominal Weight
	Size	Number of Wires	Insulation Thickness	Nominal Diameter
	Size		Insulation Thickness	Bare	O.D.
	AWG or Kcmil		mm	mm	mm	kg	kg/km
AAC
Plum	6	7	0.762	4.674	6.198	255	51.27
Apricot	4	7	0.762	5.715	7.239	400	76.33
Peach	2	7	1.143	7.417	9.703	612	127.55
Nectarine	1	7	1.143	8.328	11.481	789	169.52
Quince	1/0	7	1.524	9.347	12.395	903	206.14
Haw	1/0	19	1.524	9.474	12.522	980	206.96
Orange	2/0	7	1.524	10.513	13.561	1139	261.02
Ironwood	2/0	19	1.524	10.643	16.391	1211	253.21
Fig	3/0	7	1.524	11.801	14.849	1377	319.08
Lemon	3/0	19	1.524	11.938	14.986	1501	309.7
Olive	4/0	7	1.524	13.259	16.307	1728	381.58
Pomegranate	4/0	19	1.524	13.411	16.459	1823	382.69
Sassafras	250	19	1.524	14.580	17.628	2043	443.84
Mulberry	266.8	19	1.524	14.605	17.653	2182	467.55
Basswood	300	19	1.524	15.957	18.999	2404	525.3
Anona	336.4	19	1.524	16.916	19.964	2697	582.75
Chinquapin	350	19	1.524	17.221	20.269	2790	603.79
Molles	397.5	19	2.032	18.390	22.454	3123	713.88
Sumac	450	19	2.032	19.609	23.673	3719	798.89
Huckleberry	477	37	2.032	20.193	24.257	3810	841.98
AAAC
Maple	6	7	0.762	5.029	6.553	503	61.01
Hornbeam	4	7	0.762	6.350	7.874	798	92.12
Linden	2	7	1.143	8.026	10.312	1270	148.82
Oilnut	1/0	7	1.524	8.839	11.887	2023	247.03
Waterash	2/0	7	1.524	11.354	14.402	2445	302.01
Shellbark	3/0	7	1.524	12.751	15.799	3080	370.55
Planetree	4/0	7	1.524	14.300	17.348	3883	456.86
ACSR
Walnut	6	6/1	0.762	5.029	6.553	540	71.43
Butternut	4	6/1	0.762	6.350	7.874	844	108.64
Hickory	4	7/1	0.762	6.528	8.052	1070	123.52
Pignut	2	6/1	1.143	8.026	10.312	1293	178.58
Beech	2	7/1	1.413	8.357	10.643	1651	202.39
Chestnut	1	6/1	1.143	9.017	11.303	1610	220.25
Almond	1/0	6/1	1.524	10.109	13.157	1987	287.21
Pecan	2/0	6/1	1.524	11.354	14.402	2404	349.72
Filbert	3/0	6/1	1.524	12.751	15.799	3003	437.52
Buckeye	4/0	6/1	1.524	14.300	17.343	3787	540.2
Hackberry	266.8	18/1	1.524	15.469	18.517	3121	534.25

DUPLEX SERVICE DROP CABLE

Code word	Phase Conductors				Bare Neutral		Nominal Weight
	Size & Number of Wires	Insulation Thickness	Nominal Diameter		Size & Number of Wires	Rated Strength
		Insulation Thickness	Bare	O.D.		Rated Strength
		mm	mm	mm		kg	kg/km
AAC
Pekingese	6-1	1.14	4.1	6.4	6-7	255	94
Collie	6-7	1.14	4.6	6.9	6-7	255	97
Cocker	6-7	1.52	4.6	7.7	6-7	255	106
Dachshund	4-1	1.14	5.2	7.5	6-7	400	141
Spaniel	4-7	1.14	5.9	8.2	6-7	400	146
Cairn	4-7	1.52	5.9	8.9	6-7	400	156
Doberman	2-7	1.14	7.4	9.7	2-7	612	223
Airedale	1-19	1.52	8.4	11.5	1-7	–	290
Basset	1/0-7	1.52	9.3	12.4	1/0-7	903	359
Malemure	1/0-19	1.52	9.4	12.5	1/0-7	903	359
AAAC
Chihuahua	6-1	1.14	4.1	6.4	6-7	499	94
Vizsla	6-7	1.14	4.6	6.9	6-7	499	97
Harner	4-1	1.14	5.2	7.5	4-7	798	143
Whippet	4-7	1.14	5.9	8.2	4-7	798	146
Schnauzer	2-7	1.14	7.4	9.7	2-7	1270	226
Afghan	1/0-7	1.52	9.3	12.4	1/0-7	2023	360
Heeler	1-19	1.52	9.4	12.5	1/0-7	2023	360
ACSR
Setter	6-1	1.14	4.1	6.4	6-6/1	540	94
Shepherd	6-7	1.14	4.6	6.9	6-6/1	540	97
Retriever	6-7	1.52	4.6	7.7	6-6/1	540	106
Eskimo	4-1	1.14	5.2	7.5	4-6/1	844	141
Terrier	4-7	1.14	5.9	8.2	4-6/1	844	146
Yorkshire	4-7	1.52	5.9	8.9	4-6/1	844	156
Chow	2-7	1.14	7.4	9.7	2-6/1	1293	223
Labrador	1-19	1.52	8.4	11.5	1-6/1	1610	290
Bloodhound	1/0-7	1.52	9.3	12.4	1/0-6/1	1987	359
Bull	1/0-19	1.52	9.4	12.5	1/0-6/1	1987	359

TRIPLEX SERVICE DROP CABLE

Code word	Phase Conductors				Bare Neutral		Nominal Weight
	Size & Number of Wires	Insulation Thickness	Nominal Diameter		Size & Number of Wires	Rated Strength
		Insulation Thickness	Bare	O.D.		Rated Strength
		mm	mm	mm		kg	kg/km
AAC
Halotis	6-1	1.14	4.115	6.4	6-7	255	152
Pike	6-7	0.76	4.67	6.2	6-7	255	143
Patella	6-7	1.14	4.67	7	6-7	255	159
Albus	6-7	1.52	4.67	7.7	6-7	255	198
Fusus	4-1	1.14	5.182	7.5	4-7	400	229
Oyster	4-7	1.14	5.89	8.2	4-7	400	237
Argo	4-7	1.52	5.89	8.9	4-7	400	258
Clam	2-7	1.14	7.42	9.7	2-7	612	359
Thia	2-7	1.52	7.42	10.5	2-7	612	383
Mussel	2-7	1.14	7.42	9.7	2-7	612	359
Pyrula	1-7	1.52	8.33	11.4	1-7	744	467
Hyas	1-19	1.52	8.43	11.5	1-7	744	469
Murex	1/0-7	1.52	9.35	12.4	1/0-7	903	513
Purpura	1/0-19	1.52	9.47	12.5	1/0-7	903	515
Nasa	2/0-7	1.52	10.52	13.6	2/0-7	1139	710
Trophon	2/0-19	1.52	10.64	13.7	2/0-7	1139	713
Quahog	3/0-7	2.03	11.79	15.9	3/0-7	1379	926
lone	3/0-19	2.03	11.94	16.0	3/0-7	1379	929
Melita	3/0-19	1.52	11.94	15.0	3/0-19	1501	881
Coquina	4/0-7	1.52	13.26	16.3	4/0-7	1737	1089
Tusk	4/0-7	2.03	13.26	17.3	4/0-7	1737	1141
Apus	4/0-19	2.03	13.41	17.5	4/0-7	1737	1144
Portunus	4/0-19	1.52	13.41	16.5	4/0-19	1823	1091
Chiton	266.8-19	2.03	14.88	18.9	266.8-19	2254	1409
Nannynose	336.4-19	2.03	16.92	21.0	336.4-19	2790	1749
AAAC
Homarus	6-1	1.14	4.115	6.4	6-7	499	159
Minex	6-1	1.14	4.115	13.3	6-7	499	159
Cabera	6-7	1.14	4.65	6.9	6-7	499	165
Hippa	6-7	1.14	4.65	6.9	6-7	499	165
Artemia	4-1	1.14	5.182	7.5	6-7	499	214
Maira	4-7	1.14	5.89	8.2	6-7	499	247
Crab	4-7	1.14	5.89	8.2	6-7	499	222
Luidia	4-1	1.14	5.182	7.5	6-7	499	214
Prawn	4-1	1.14	5.182	7.5	6-7	499	240
Metalia	4-7	1.14	5.89	8.2	4-7	798	247
Barnacles	4-7	1.14	5.89	8.2	4-7	798	247
Solaster	2-7	1.14	7.42	9.7	4-7	798	333
Pagarus	2-7	1.52	7.42	10.5	4-7	798	357
Shrimp	2-7	1.52	7.42	9.7	2-7	1270	374
Lobster	2-7	1.52	7.42	10.5	2-7	1270	397
Encope	1-19	1.52	8.43	11.5	2-7	1270	461
Sanderab	1/0-7	1.52	9.35	12.4	1/0-7	1270	537
Echinus	1/0-19	1.52	9.47	12.5	2-7	1270	539
Gammarus	1/0-7	1.52	9.35	12.4	1/0-7	2023	601
Leda	1/0-19	1.52	9.47	12.5	1/0-7	2023	603
Crayfish	2/0-7	1.52	10.5	13.6	2-7	1270	631
Sipho	2/0-19	1.52	10.5	13.7	2-7	1270	634
Dungenese	2/0-7	1.52	10.5	13.6	2/0-7	2445	740
Cyclops	2/0-7	1.52	10.6	13.7	2/0-7	2445	743
Slug	3/0-7	1.52	11.8	11.8	1/0-7	2023	816
Fulgur	3/0-19	1.52	11.9	15	1/0-7	2023	819
Balanus	3/0-19	2.03	11.9	16	1/0-7	2023	868
Stonecrab	3/0-7	1.52	11.8	14.8	3/0-7	3080	917
Flustra	3/0-7	1.52	11.9	15	3/0-7	3080	920
Crisia	3/0-19	2.03	11.9	16	3/0-7	3080	969
Squid	4/0-7	1.52	13.3	16.3	2/0-7	2431	1011
Arca	4/0-19	1.52	13.4	16.5	2/0-7	2431	1012
Bugula	4/0-19	2.03	13.4	17.5	2/0-7	2431	1066
Kingerab	4/0-7	1.52	13.3	16.3	4/0-7	3883	1137
Lepas	4/0-19	1.52	13.4	16.5	4/0-7	3883	1140
Cassi	4/0-19	2.03	13.4	17.5	4/0-7	3883	1194
ACSR
Paludina	6-1	1.14	4.115	6.401	6-6/1	540	170
Voluta	6-7	1.14	4.67	6.96	6-6/1	540	176
Bolma	6-7	1.52	4.67	7.722	6-6/1	540	194
Scallop	4-1	1.14	5.182	7.468	6-6/1	540	225
Strombus	4-7	1.14	5.89	8.179	6-6/1	540	232
Carnea	4-7	1.52	5.89	8.941	6-6/1	540	253
Whelk	4-1	1.14	5.182	7.468	4-6/1	844	258
Periwinkle	4-7	1.14	5.89	8.179	4-6/1	844	263
Calma	4-7	1.52	5.89	8.941	4-6/1	844	284
Cockle	2-7	1.14	5.89	8.179	4-6/1	844	335
Gebia	2-7	1.52	5.89	8.941	4-6/1	844	354
Conch	2-7	1.14	5.89	8.179	2-6/1	1293	384
Uca	2-7	1.52	5.89	8.941	2-6/1	1293	405
Vermeths	1-7	1.52	8.33	11.379	1-6/1	1610	522
Atya	1-19	1.52	8.33	11.379	1-6/1	1610	524
Janthina	1/0-7	1.52	8.33	11.379	2-6/1	1293	549
Ranella	1/0-19	1.52	8.33	12.522	2-6/1	1293	566
Neritina	1/0-7	1.52	9.47	12.395	1/0-6/1	1987	644
Cenia	1/0-19	1.52	9.47	12.522	1/0-6/1	1987	646
Cavolinia	2/0-7	1.52	10.5	13.564	1-6/1	1610	697
Clio	2/0-19	1.52	10.6	13.691	1-6/1	1610	698
Runcina	2/0-7	1.52	10.5	13.564	2/0-6/1	2404	796
Triton	2/0-19	1.52	10.6	13.691	2/0-6/1	2404	799
Sanddollar	3/0-7	1.52	11.8	14.834	1/0-6/1	1987	860
Aega	3/0-19	1.52	11.9	14.986	1/0-6/1	1987	862
Pisa	3/0-19	2.03	11.9	16.002	1/0-6/1	1987	911
Cherrystone	3/0-7	1.52	11.8	14.834	3/0-6/1	3003	987
Mursia	3/0-19	1.52	11.9	14.986	3/0-6/1	3003	990
Mysis	3/0-19	2.03	11.9	16.002	3/0-6/1	3003	990
Cuttlefish	4/0-7	1.52	13.3	16.307	2/0-6/1	2404	1066
Cerapus	4/0-19	1.52	13.4	16.459	2/0-6/1	2404	1069
Nepatus	4/0-19	2.03	13.4	17.475	2/0-6/1	2404	1121
Razor	4/0-7	1.52	13.3	16.307	4/0-6/1	3788	1225
Zuzara	4/0-19	1.52	13.4	16.459	4/0-6/1	3788	1229
Alima	4/0-19	2.03	13.4	17.475	4/0-6/1	3788	1281
Callista	266.8-19	2.03	15.1	19.126	3/0-6/1	3003	1384
Dosinia	266.8-19	2.03	15.1	19.126	266.8-18/1	3121	1472
Cowry	336.4-19	2.03	16.9	20.980	4/0-6/1	3788	1713
Limpet	336.4-19	2.03	16.9	20.980	336.4-18/1	3937	1823

QUADRUPLEX SERVICE DROP CABLE

Code word	Phase Conductors				Bare Neutral		Nominal Weight
	Size & Number of Wires	Insulation Thickness	Nominal Diameter		Size & Number of Wires	Rated Strength
		Insulation Thickness	Bare	O.D.		Rated Strength
		mm	mm	mm		kg	kg/km
AAC
Quarter	6-1	1.143	4.115	6.401	6-7	256.371	211
Clydesdate	4-1	1.143	5.182	7.468	4-7	399.613	315
Pinto	4-7	1.143	5.893	8.179	4-7	399.613	326
Mustang	2-7	1.143	7.417	9.703	2-7	612.347	491
Shire	1-19	1.524	8.433	11.481	1-19	743.886	646
Libyan	1/0-7	1.524	9.347	12.395	1/0-7	902.644	790
Criollo	1/0-19	1.524	9.474	12.522	1/0-19	902.644	793
Orloff	2/0-7	1.524	10.516	13.564	2/0-7	1138.511	973
Percheron	2/0-19	1.524	10.643	13.691	2/0-19	1138.511	976
Mongolian	3/0-7	1.524	11.786	14.834	3/0-7	1378.914	1199
Hanoverian	3/0-19	1.524	11.938	14.986	3/0-19	1378.914	1204
Singlefoot	4/0-7	1.524	13.259	16.307	4/0-7	1737.250	1485
Oldenburg	4/0-19	1.524	13.411	16.459	4/0-19	1737.250	1490
AAAC
Bay	6-1	1.143	4.115	6.401	6-7	503.485	217
French-conch	6-7	1.143	4.764	6.96	6-7	503.485	226
German-conch	4-1	1.143	5.182	7.468	4-7	798.318	324
Arabian	4-7	1.143	5.893	8.179	4-7	784.711	336
Belgian	2-7	1.143	7.417	9.703	2-7	1270.052	506
Saddle	1-19	1.524	8.433	11.481	1-19	1270.052	637
Plow	1/0-7	1.524	9.347	12.395	1/0-7	2023.011	814
Sherland	1/0-19	1.524	9.474	12.522	1/0-19	2023.011	817
Dapple-grey	2/0-7	1.524	10.516	13.564	2/0-7	2444.850	1005
Thoroughbred	2/0-19	1.524	10.643	13.691	2/0-19	2444.850	1007
Dobbin	3/0-7	1.524	11.786	14.834	3/0-7	3079.876	1238
Trotter	3/0-19	1.524	11.938	14.986	3/0-19	3079.876	1243
Pony	4/0-7	1.524	13.259	16.307	4/0-7	3882.730	1534
Walking	4/0-19	1.524	13.411	16.459	4/0-19	3882.730	1539
ACSR
Morochuca	6-1	1.143	4.115	6.401	6-6/1	539.772	229
Chola	6-7	1.143	4.674	6.96	6-6/1	539.772	237
Morgan	4-7	1.143	5.182	7.468	4-6/1	843.677	344
Hackney	4-7	1.143	5.893	8.179	4-6/1	843.677	356
Palomino	2-7	1.143	7.417	9.703	2-6/1	1292.732	557
Albino	1-19	1.524	8.433	11.481	1-6/1	1610.245	699
Standardbred	1/0-7	1.524	9.347	12.395	1/0-6/1	1986.724	859
Costena	1/0-19	1.524	9.474	12.522	1/0-6/1	1986.724	862
Chicoteagues	2/0-7	1.524	10.516	13.564	2/0-6/1	2404.027	1060
Grullo	2/0-19	1.524	10.643	13.691	2/0-6/1	2404.027	1063
Mare	3/0-7	1.524	11.786	14.834	3/0-6/1	3002.766	1306
Suffolk	3/0-19	1.524	11.938	14.986	3/0-6/1	3002.766	1313
Stallion	4/0-7	1.524	13.259	16.307	4/0-6/1	3787.477	1622
Appaloosa	4/0-19	1.524	13.411	16.459	4/0-6/1	3787.477	1627
